Protecting Your Floors from Damage
When it comes to flooring installations, ensuring long-term durability and performance is a top priority. One essential yet often overlooked component that plays a crucial role in achieving this is an anti-fracture membrane. Whether you're working on a residential or commercial project, this membrane offers valuable protection against cracks that can compromise the integrity of your floor coverings.
In this guide, we’ll explore what crack reduction membranes are, why they are important, and how to choose the right one for your next flooring project.
What is an Anti-Fracture Membrane?
An anti-fracture or crack reduction membrane is a thin layer of material designed to be applied beneath floor coverings, such as tile, stone, microcement render, or vinyl, to prevent cracks in the substrate from transferring through to the surface. These membranes act as a buffer between the floor’s subfloor (concrete, plywood, etc.) and the finished floor covering. When properly installed, they minimise the potential for cracking due to structural movement or thermal expansion.
How does it work? An anti-fracture membrane works by absorbing and dispersing the stresses caused by substrate movement, preventing them from reaching the finished floor surface. When the subfloor experiences expansion, contraction, or settlement — whether due to temperature changes, moisture fluctuations, or structural shifts — the membrane flexes and stretches to accommodate these movements. This cushioning effect helps to protect the floor covering from cracking, maintaining the integrity of the surface over time.
Why You Need an Anti-Fracture/Crack Reduction Membrane
-
Prevents Crack Propagation
As mentioned above, a membrane prevents environmental stresses, thermal expansion, or structural movements from causing cracks in your subfloor. If left unprotected, these cracks can travel from the substrate up to the finished surface and cause visible damage to tiles, plaster or cement renders, and other floor coverings. A good membrane is flexible enough to stretch along with the substrate — SEMCO Works Liquid Membrane™️ has unmatched 1300% elongation!
-
Ensures Longevity of Floor Coverings
Flooring materials can be expensive investments, whether it’s tiles, stone, or another bespoke hand-applied finish — and any damage to these surfaces can be inconvenient and/or costly to replace. By applying a crack reduction membrane, you extend the life of the finished floor by preventing premature damage.
-
Waterproofing Benefits
Some anti-fracture membranes are also waterproof. This is an absolute necessity in areas with high humidity or where water exposure is common, such as bathrooms or kitchens. You guessed it: SEMCO Liquid Membrane™️ is one of these advanced two-in-one products! This is an especially important component in bathrooms, kitchens, basements, and externally, where moisture is a constant concern.
Types of Crack Reduction Membranes: How to Choose the Right One
There are several types of anti-fracture membranes available, each with its own unique features and applications:
-

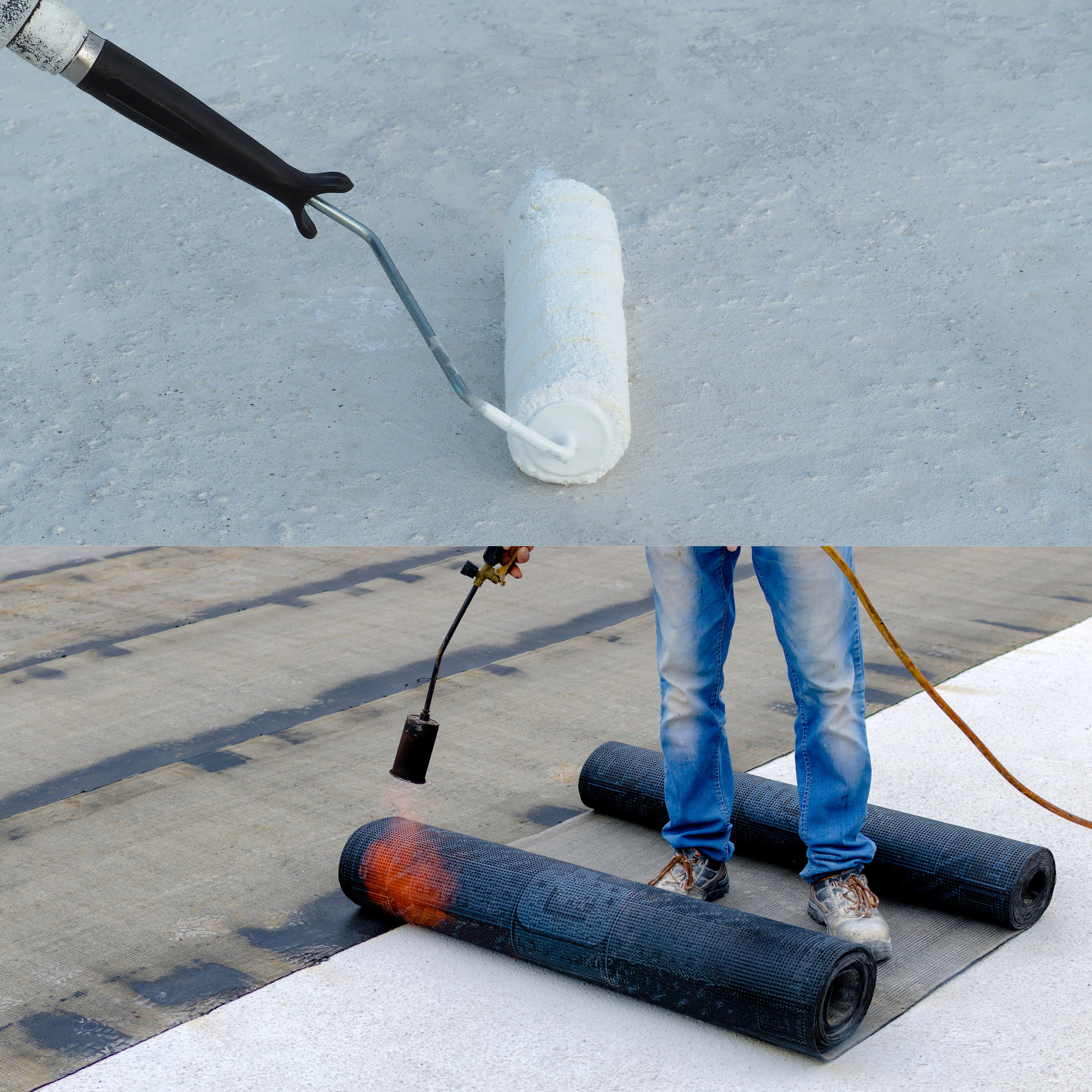

Sheet Membranes
Pre-formed sheet membranes are typically applied using adhesive and are known for being durable and hardy. They are often used for commercial projects and areas with high foot traffic. However, adapting sheets to irregular shapes can be challenging, and eliminating weak points like joints or seams where moisture could seep through requires extra care.
- Liquid Membranes
Liquid membranes are applied like paint using a roller, spray gun, or brush. Once cured, they create a seamless barrier ensuring continuous water protection across the entire floor surface — while being flexible enough to stretch as substrates move, preventing cracks from occurring. Unlike sheets, liquid membranes can be applied to custom-sized areas without the need for cutting, making them easier to use for complex or irregular spaces. Our formula dries in just a few hours, allowing for quicker project completion.
- Cement-Based Membranes
Cement-based membranes are ideal for projects that require a thicker layer of protection or added strength. However, this means they require more time to dry, and they may not be as flexible as other options, making them less suitable for areas that experience significant movement or shifting.
When selecting a membrane for your flooring project, consider the following factors:
-
Subfloor Type
Different membranes work better with specific subfloor materials. Make sure to choose a membrane compatible with your substrate — whether it's concrete, plywood, or another material. Liquid membranes are highly versatile and adhere well to a wide range of substrates as they’re formulated with special bonding chemicals, which makes them an excellent choice for most subfloor types.
-
Thickness
If your substrate is heavily damaged or has larger cracks, a thicker membrane may be needed to provide sufficient protection. In such cases, cement-based membranes offer added strength and crack resistance. However, any membrane type can be paired with fabric reinforcement to bridge any cracks. For less problematic surfaces or fractures under 6mm wide, a liquid membrane offers the flexibility needed while remaining thin enough for smooth surfaces.
-
Waterproofing Needs
For wet areas like bathrooms or kitchens, choosing a membrane with waterproofing properties is crucial. Liquid membranes, in particular, excel in this area, as they form seamless, waterproof barriers that effectively prevent water damage. They are particularly well-suited for complex or custom spaces where other membranes may leave gaps.
-
Ease of Installation
Consider the ease of installation for your specific project. While sheet membranes can be faster to install on flat or simple surfaces, liquid membranes are ideal for more intricate or custom areas. Liquid membranes can be easily applied with a roller, brush, or spray, making them the best option for areas with irregular shapes or hard-to-reach spots.
-
Price and Warranty
Compare the price of different membranes and check the warranty offered by the manufacturer. Liquid membranes tend to be cost-effective with great coverage per bucket, as they’re applied so thinly; but cement-based membranes may provide more durability for larger-scale projects. While liquid membranes typically offer excellent long-term performance, be sure to check the warranty for peace of mind.
How to Install an Anti-Fracture/Crack Reduction Membrane
Proper installation is key to ensuring the effectiveness of your membrane. Here’s a general step-by-step process:
-
Prepare the Subfloor
Ensure the subfloor is clean, dry, and free of any debris or contaminants. Repair any existing cracks or imperfections before proceeding. Different substrates require different preparation methods; we have these instructions sorted per material on our product page here.
-
Apply the Membrane
Apply your chosen membrane per the supplier instructions e.g. roll out the sheet membrane and apply adhesive, or apply the recommended number of coats of the liquid membrane using a roller or brush. Be sure to follow the manufacturer's instructions carefully for proper coverage and thickness.
-
Allow to Cure
Allow the membrane to cure completely before applying the floor covering. This curing time will vary based on the type of membrane, so refer to the product’s instructions for the exact wait time.
-
Install the Flooring
Once the membrane is fully cured, you can proceed with installing your floor covering of choice, such as microcement, tile, or stone.
Anti-fracture protection is an essential component of a successful flooring installation. By preventing cracks and fractures from reaching the surface, they ensure the longevity and integrity of your floor coverings. Investing in the right membrane will protect your floors and save you from costly repairs down the line.
